Application Specification
114-10004
18 MAR 15 Rev M
NOTE
All numerical values are in metric units [with U.S. customary units in brackets]. Dimensions are in millimeters [and inches].
Unless otherwise specified, dimensions have a tolerance of ±0.13 [±.005] and angles have a tolerance of ±2°. Figures and
illustrations are for identification only and are not drawn to scale.
1. INTRODUCTION
This specification covers the requirements for application of Type III+ (Size 16) Contacts. These contacts have
a pin diameter of 1.57 mm [.062 in.]. A color dot appears on the loose piece or (loose piece only) contact spring
which designates the applicable wire size and matches the color dot above the hand tool crimping section.
These requirements apply to hand or automatic machine crimping tools for the insulated grip contacts.
When corresponding with TE Connectivity Personnel, use the terminology provided in this specification to
facilitate inquiries for information. Basic terms and features of this product are provided in Figure 1.

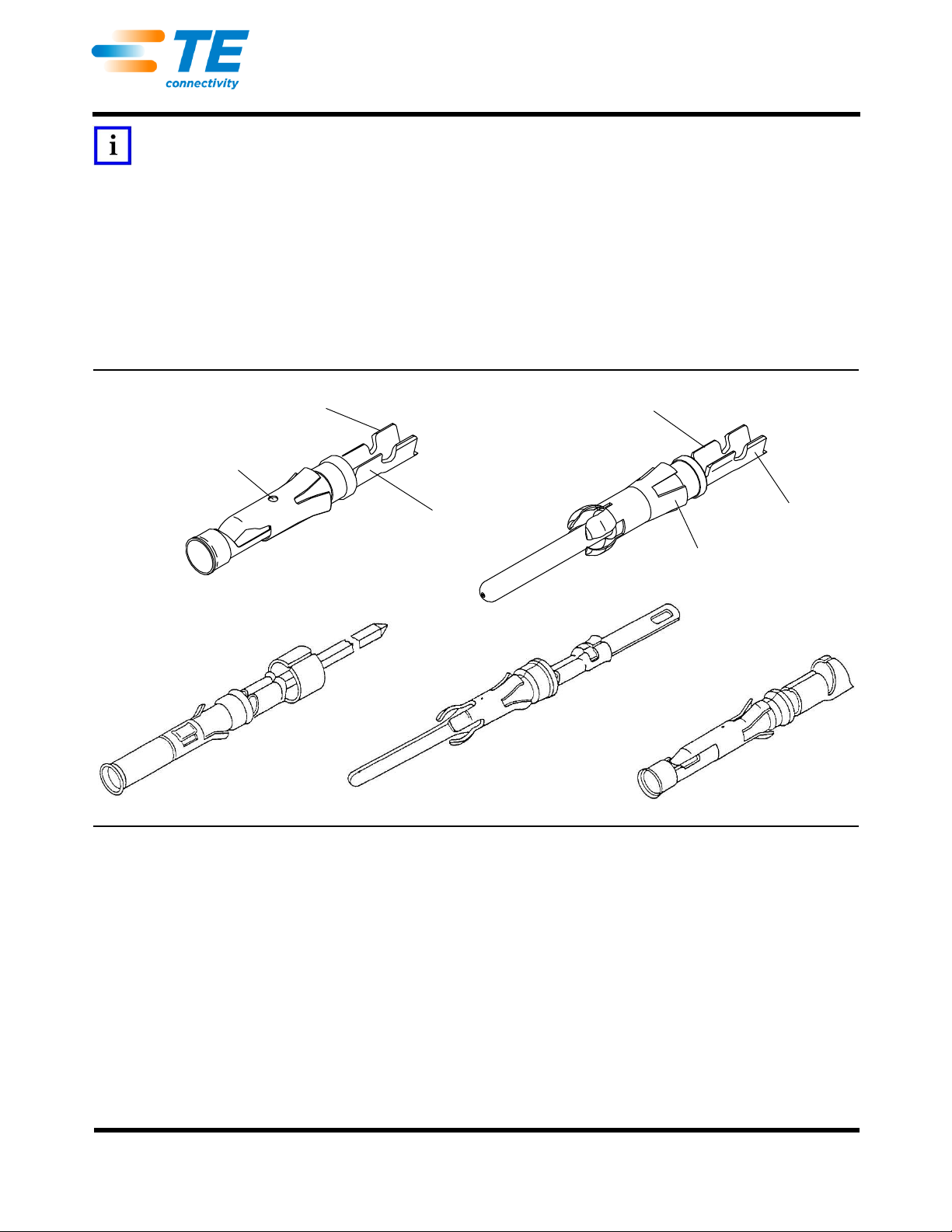

Figure 1
2. REFERENCE MATERIAL
2.1. Revision Summary
Updated document to corporate requirements
Changed information in Paragraph 2.6, and tables in Figures 2 and 6
2.2. Customer Assistance
Reference Product Base Part Number 66098 and Product Code 5022 are representative of the Type III+
(Size 16) Contacts. Use of these numbers will identify the product line and help you to obtain product and
tooling information. Such information can be obtained through a local TE Representative, by visiting our
website at www.te.com, or by calling PRODUCT INFORMATION or the TOOLING ASSISTANCE CENTER at
the numbers at the bottom of this page.
Type III+ (Size 16) Contacts
Insulation Grip Contacts
Insulation Barrel
Wire Barrel
Color Dot
(Loose Piece Only)
Wire Barrel
Insulation Barrel
Socket
Pin
Locking Lance
Posted Socket
Solder Type Socket
Solder Tab Pin
