N2013 TKIM TC-00003058/31710EA TKIM/10904TN (KT)/O1598HA (KT)/D2680MO/4097TA, TS No.2555-1/5
http://onsemi.com
Semiconductor Components Industries, LLC, 2013
November, 2013
2SB1302
Bipolar Transisitor
–
20V,
–
5A, Low V
CE
(
sat
)
PNP Single PCP
Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating
Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.
Applicaitons
•
DC-DC converters, motor drivers, relay drivers, lamp drivers
Features
•
Adoption of FBET, MBIT processes
•
Low collector to emitter saturation voltage
•
Large current capacity
•
Fast switching speed
•
Ultrasmall size making it easy to provide high-density, small-sized hybrid IC’s
Specifi cations
Absolute Maximum Ratings
at Ta=25°C
Parameter Symbol Conditions Ratings Unit
Collector to Base Voltage V
CBO
--25 V
Collector to Emitter Voltage V
CEO
--20 V
Emitter to Base Voltage V
EBO
--5 V
Collector Current I
C
--5 A
Collector Current (Pulse) I
CP
--8 A
Continued on next page.

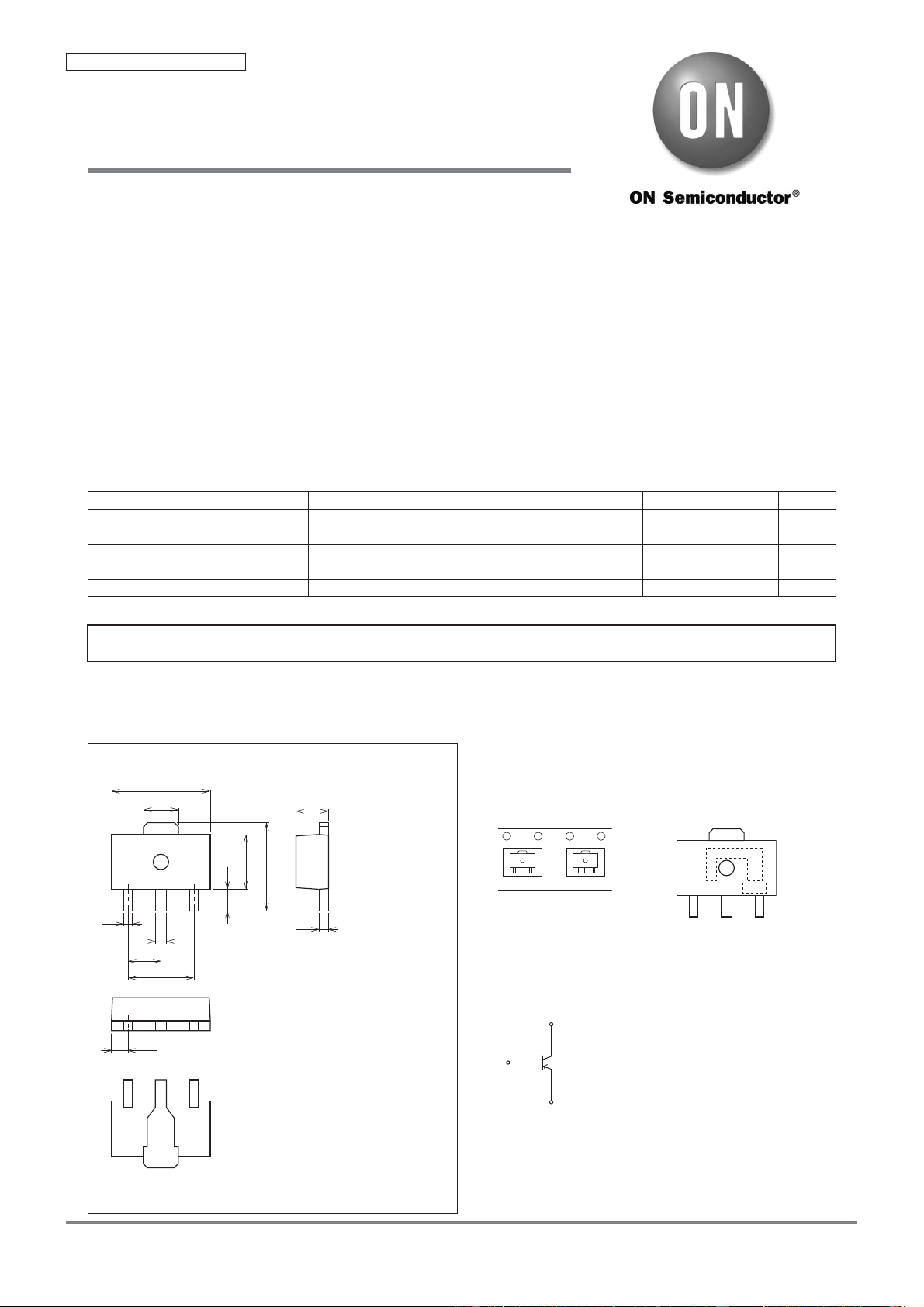

Package Dimensions
unit : mm (typ)
7007B-004
Ordering number : EN2555C
Product & Package Information
• Package : PCP
• JEITA, JEDEC : SC-62, SOT-89, TO-243
•
Minimum Packing Quantity
: 1,000 pcs./reel
Packing Type: TD Marking
Electrical Connection
TD
1 : Base
2 : Collecto
r
3 : Emitter
PCP
2.5
4.0
1.0
1.5
0.5
0.4
3.0
4.5
1.6
0.4
123
1.5
0.75
Top View
Bottom View
2SB1302S-TD-E
2SB1302T-TD-E
BJ
LOT No.
RANK
2
3
1
