2SA2125/2SC5964
Bipolar Transistor
(–)
50V,
(–)
3A, Low V
CE
(
sat
)
,
(
PNP
)
NPN Single PCP
Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating
Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.
Applicaitons
•
DC / DC converter, relay drivers, lamp drivers, motor drivers, fl ash
Features
•
Adoption of MBIT process
•
Large current capacity
•
Low collector to emitter saturation voltage
•
High-speed switching
•
Halogen free compliance
Specifi cations
( ) : 2SA2125
Absolute Maximum Ratings
at Ta=25°C
Parameter Symbol Conditions Ratings Unit
Collector to Base Voltage V
CBO
(-50)100 V
Collector to Emitter Voltage
V
CES
(-50)100 V
V
CEO
(--)50 V
Emitter to Base Voltage V
EBO
(--)6 V
Continued on next page.

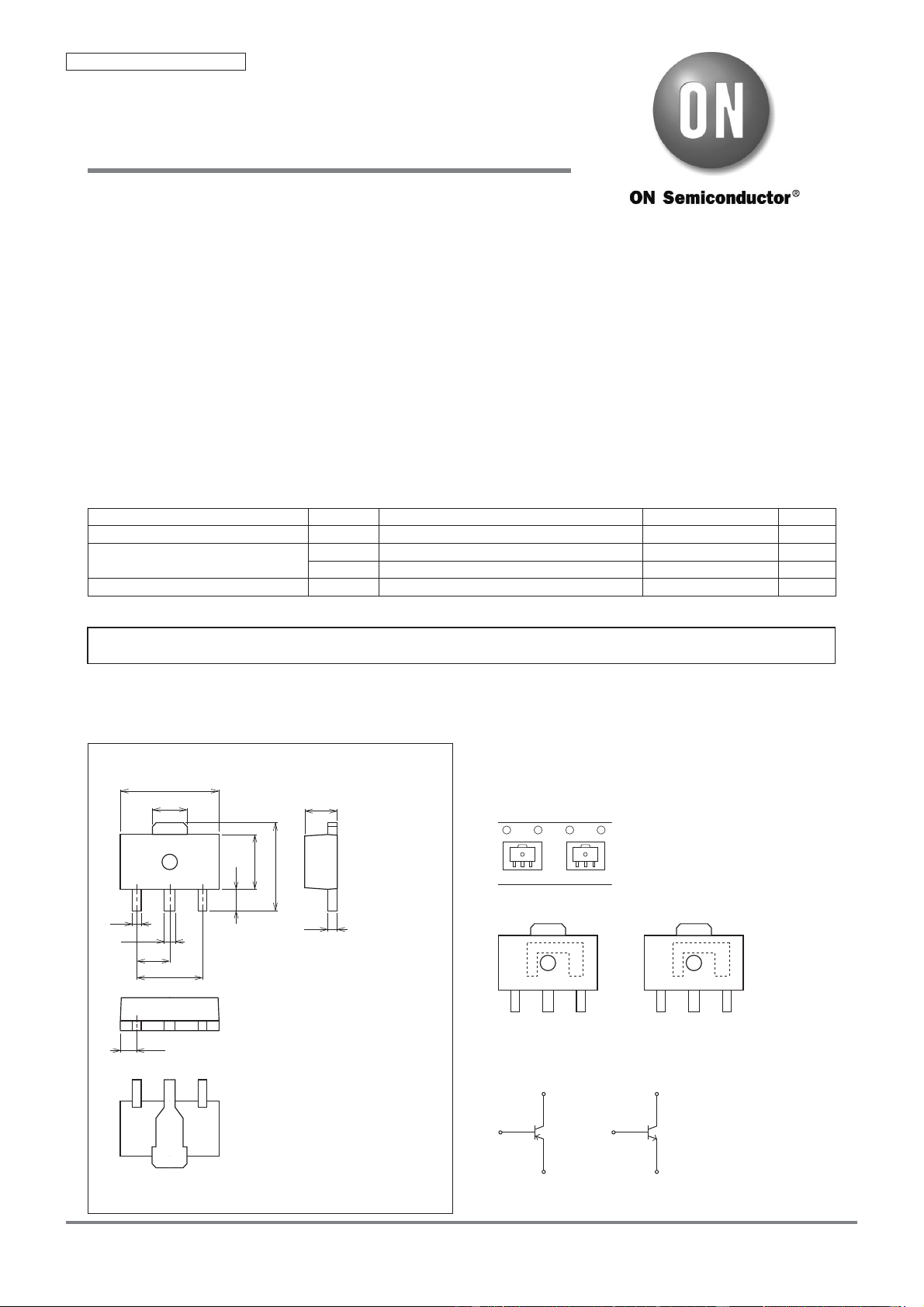

Package Dimensions
unit : mm (typ)
7007B-004
Ordering number : EN7988B
Product & Package Information
• Package : PCP
• JEITA, JEDEC : SC-62, SOT-89, TO-243
•
Minimum Packing Quantity
: 1,000 pcs./reel
Packing Type: TD
Marking
Electrical Connection
TD
1 : Base
2 : Collecto
r
3 : Emitter
PCP
2.5
4.0
1.0
1.5
0.5
0.4
3.0
4.5
1.6
0.4
123
1.5
0.75
Top View
Bottom View
2SA2125-TD-E
2SA2125-TD-H
2SC5964-TD-E
2SC5964-TD-H
AY
LOT No.
HA
LOT No.
2SC59642SA2125
2
3
1
2SC5964
2
3
1
2SA2125
