© Semiconductor Components Industries, LLC, 2016
February, 2016 − Rev. 5
1 Publication Order Number:
KAI−11002/D
KAI-11002
4008 (H) x 2672 (V) Interline
CCD Image Sensor
Description
The KAI−11002 Image Sensor is a high-performance 11-million
pixel sensor designed for professional digital still camera applications.
The 9.0 mm square pixels with microlenses provide high sensitivity
and the large full well capacity results in high dynamic range. The two
high-speed outputs and binning capabilities allow for 1−3 frames per
second (fps) video rate for the progressively scanned images.
The vertical overflow drain structure provides anti-blooming
protection and enables electronic shuttering for precise exposure
control. Other features include low dark current, negligible lag and
low smear.
Table 1. GENERAL SPECIFICATIONS
Parameter Typical Value
Architecture Interline CCD, Progressive Scan
Total Number of Pixels 4072 (H) × 2720 (V) = 11.1 M
Number of Effective Pixels 4033 (H) × 2688 (V) = 10.8 M
Number of Active Pixels 4008 (H) × 2672 (V) = 10.7 M
Number of Outputs 1 or 2
Pixel Size
9.0 mm (H) × 9.0 mm (V)
Active Image Size 37.25 mm (H) × 25.70 mm (V),
43.3 mm (Diagonal),
35 mm Optical Format
Aspect Ratio 3:2
Saturation Signal 60,000 e
−
Quantum Efficiency
KAI−11002−ABA
KAI−11002−CBA (RGB)
KAI−11002−FBA (RGB)
50%
32%, 34%, 40%
35%, 38%, 40%
Output Sensitivity
13 mV/e
−
Total Noise 30 e
−
Dark Current < 50 mV/s
Dark Current Doubling
Temperature
7°C
Dynamic Range 66 dB
Charge Transfer Efficiency > 0.99999
Blooming Suppression > 1000X
Smear < −80 dB
Image Lag < 10 e
−
Maximum Data Rate 28 MHz
Package 40-pin, CERDIP, 0.070″ Pin Spacing
Cover Glass AR Coated or Clear Glass
NOTE: All Parameters are specified at T = 40°C unless otherwise noted.
Features
• High Resolution
• High Sensitivity
• High Dynamic Range
• Low Noise Architecture
• High Frame Rate
• Binning Capability for Higher Frame Rate
• Electronic Shutter
Applications
• Industrial Inspection
• Aerial Photography
www.onsemi.com

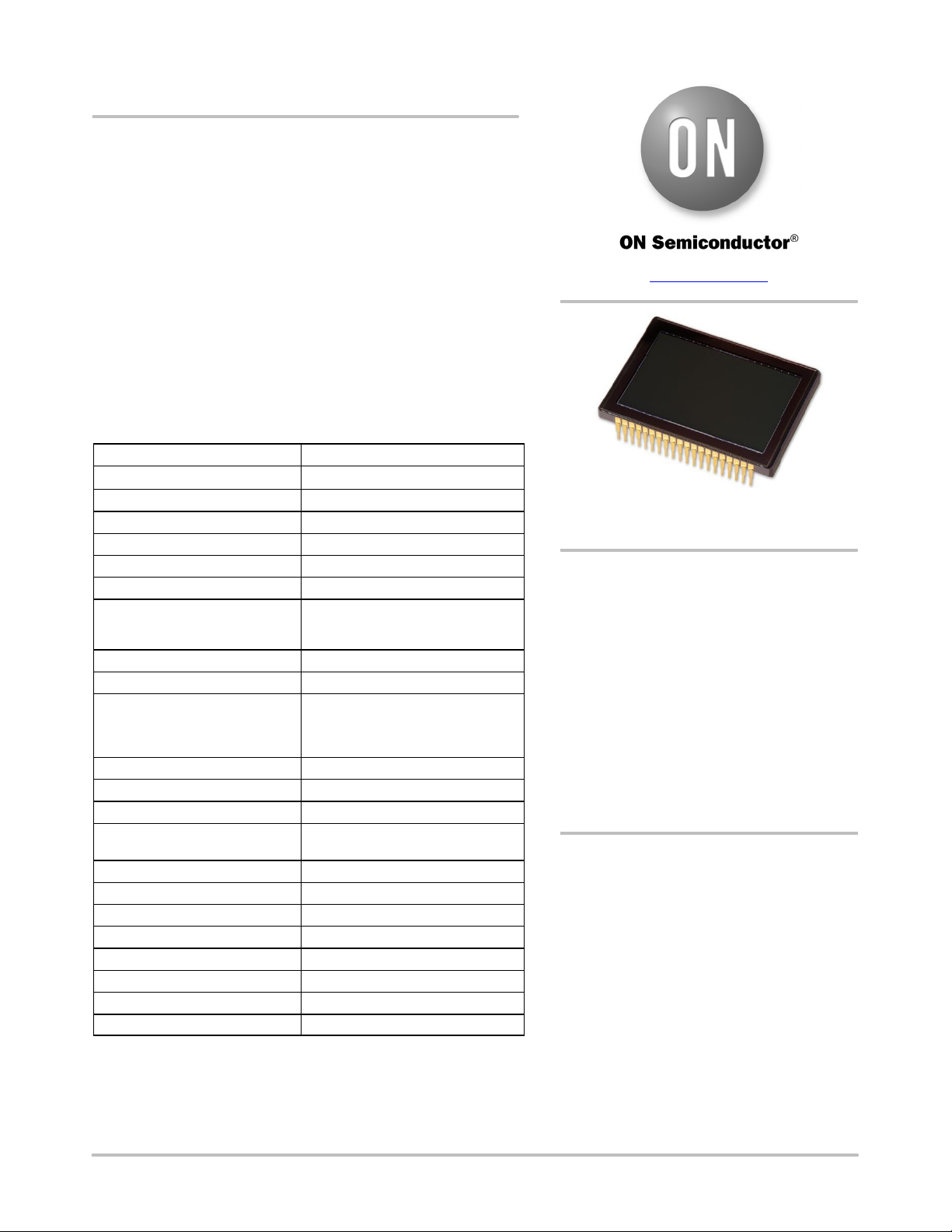

Figure 1. KAI−11002 Interline CCD
Image Sensor
See detailed ordering and shipping information on page 2 o
f
this data sheet.
ORDERING INFORMATION
