74F377 Octal D-Type Flip-Flop with Clock Enable
74F377
Octal D-Type Flip-Flop with Clock Enable
General Description
The 74F377 has eight edge-triggered, D-type flip-flops with
individual D inputs and Q outputs. The common buffered
Clock (CP) input loads all flip-flops simultaneously, when
the Clock Enable (CE
) is LOW.
The register is fully edge-triggered. The state of each D
input, one setup time before the LOW-to-HIGH clock transi-
tion, is transferred to the corresponding flip-flop’s Q output.
The CE
input must be stable only one setup time prior to
the LOW-to-HIGH clock transition for predictable operation.
Features
■ Ideal for addressable register applications
■ Clock enable for address and data synchronization
applications
■ Eight edge-triggered D-type flip-flops
■ Buffered common clock
■ See 74F273 for master reset version
■ See 74F373 for transparent latch version
■ See 74F374 for 3-STATE version
Ordering Code:
Devices also available in Tape and Reel. Specify by appending the suffix letter “X” tot he ordering code.

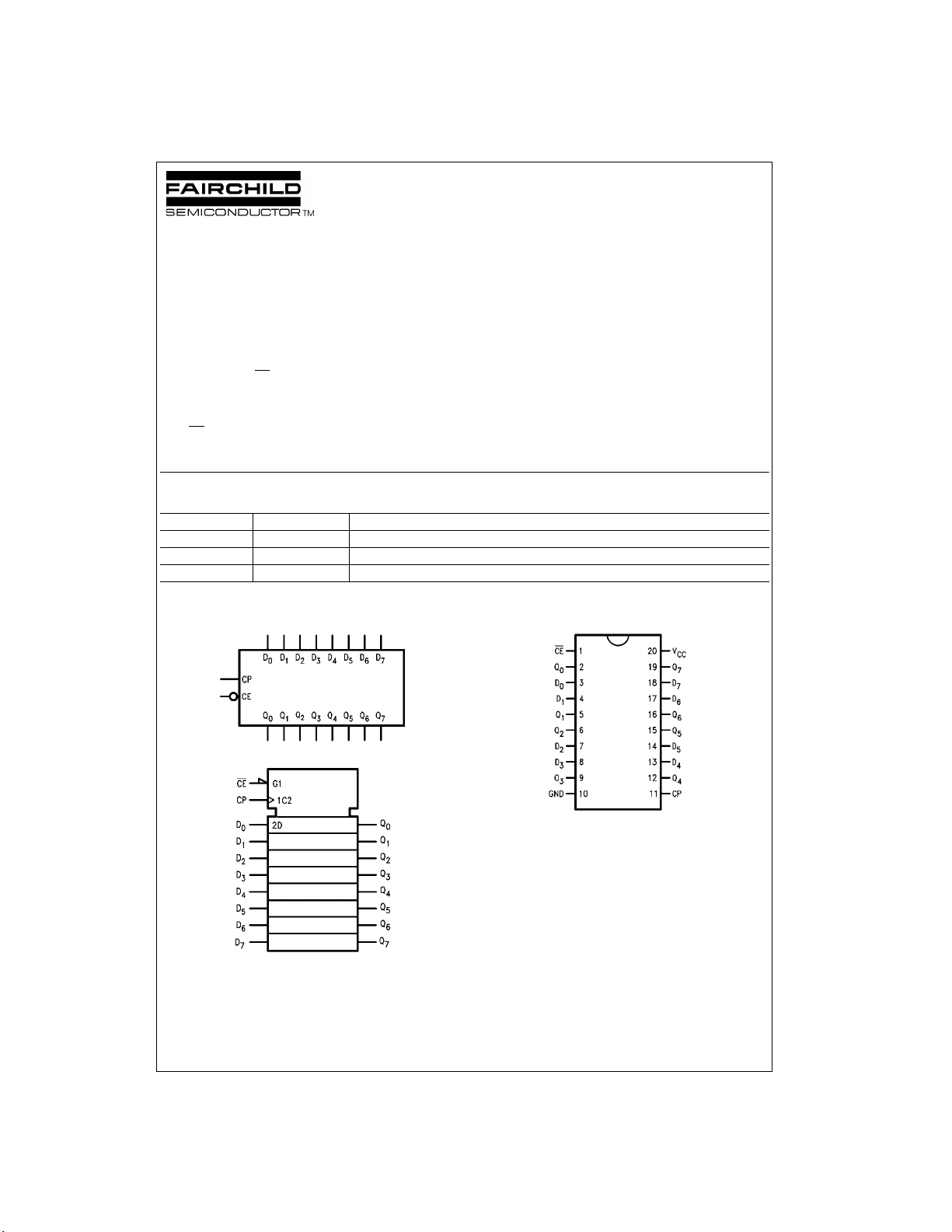

Logic Symbols
IEEE/IEC
Connection Diagram
Order Number Package Number Package Description
74F377SC M20B 20-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300 Wide
74F377SJ M20D 20-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
74F377PC N20A 20-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
